How To Repair 36v Ezgo Charger

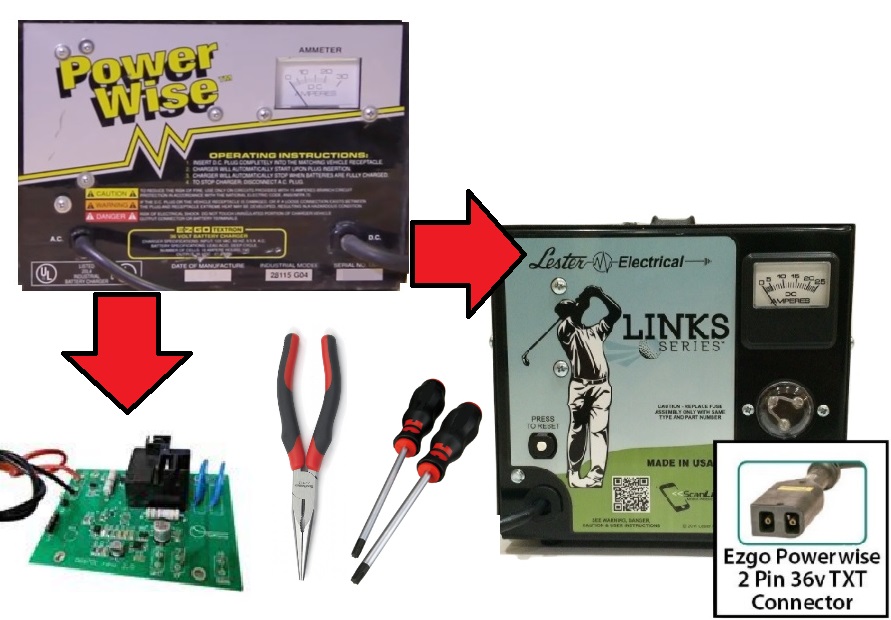

Nosotros get customers all the fourth dimension that ask united states the tough question. Should I repair my Ezgo Powerwise Charger or just replace information technology? This is something that Pete ordinarily says… "If information technology is an electrical component and you are not an electrician or seasoned tinkerer just replace it."
When it makes sense to supercede
When it comes to spending time and money on something that you find yourself just continuing there afterwards with your fingers crossed hoping it will work – it is best to just replace the charger. Now this comes with a few other caveats because when customers call over the phone and try to explain the problem it has numerous possible causes being the charger needs to rely on the golf carts charging system to be operational as well in order to turn on. Several factors on the golf cart itself can cause the charger non to work or kick on.
Fixing the Ezgo Powerwise Charger
So if you want to take a stab at fixing or at least diagnosing the problem read on….
Dead carts
The biggest 1 is a completely dead cart. If the batteries in your golf game cart are so dead the cart will not run and bulldoze as intended you will demand to charge each battery individually with like an automotive charger with clamps to revive before your Ezgo Powerwise charger will kick on if it is operational.
Excursion problems
Now you can also have a bad connection, a blown fuse or a wire in the accuse circuit that is non completing the excursion. The easiest way to make up one's mind these few things is to go a voltage meter and check a few basic connections and the overall voltage of the golf carts battery bank. When you lot have half-dozen new 6 volt batteries combined in a circuit you will have approx. 38-39 volts. If the cart is non running and driving the voltage is almost probable well below 30 volts and maybe why the charger will not plow on. With your handy volt meter yous tin can check this and tick off the box. Yes or No?
Charge excursion
Next step would be to determine if the accuse excursion is still complete? Accept the positive and negative pins from the volt meter and insert in the cart side powerwise charge receptacle. Yous should take the exact same voltage you take at the positive and negative almost terminals on the battery bank. Example – If the cart has 37.8 volts at the batteries, then you should have 37.7 – 37.8 volts at the charger receptacle. Aye or No? If yes then the charge circuit is complete and the problem could very well be your Ezgo PowerWise Charger. Now if you don't get the same voltage you lot will need to back track the circuit from the charger receptacle to the batteries. Double cheque all the wires going dorsum to the batteries… piece of work your way backwards with the volt meter until you tin can narrow downwardly the fault. Golf carts are fairly easy to work on so it should be obvious enough once y'all tin can narrow it down a bit and first looking around and chasing wires. It could be as simple as an in-line fuse.
Further checks
Now if all checks out:
- Running and driving golf cart
- Advertised operating voltage. (In this case 36v or greater)
- 36 volts + at the battery terminals
- 36 volts + at the charger receptacle
Time to check the charger farther.
Observe a neighbor
If possible encounter if someone has another 36 volt Ezgo golf cart in your neighborhood with the aforementioned TxT two pivot connector. Plug in to run across if your Ezgo Powerwise charger works on their golf cart. If not and then you can merely become out the tools and start taking information technology autonomously or plan to replace it.
Corrosion and wear
Usually with these older fashion transformer based golf cart battery chargers nosotros find they are corroded due to extended periods of time left out in the elements. Another issues occur when a lighting strike takes place and information technology tin cause a Power Surge that volition burn something up quite fast. Usually a fuse will pop first if you have a fusable link in the charger circuit but nigh chargers do not as is the example with your Ezgo powerwise charger.
Protecting your charger
Pete recommends using a ability strip with a billow built in to plug your charger into to avoid this mutual effect in S Florida. The power surge will simply pop the breaker on the power strip just salve y'all about $500 – $1000 dollars depending on what kind of cart yous ain.
Excursion Control Board
So side by side in line is the most common internal function to fail over time is the Ezgo Powerwise Charger Circuit Control Board OEM Role#28667G01 If all other possible issues take been checked and are ok this is usually the trouble. It is a fairly simple matter to replace with bones tools like pliers and screw drivers. Should you purchase one and want to learn how to install i here is a how to commodity that covers the installation
Transformers
Though in that location are a few other internal components that can cause malfunction or charger not to piece of work. Things similar the transformer itself – or relays. Sometimes it is a relay which is easily checked but transformers rarely go out unless the charger got really moisture and just shorted out or got corroded over time. Repairing anything is a procedure your golf game cart battery charger is no different.
When to buy a new ane?
Normally this is where I enquire myself should I bother to attempt to fix it or just buy a new one? If I utilise information technology frequently and need reliability I would just buy a new Ezgo Powerwise Charger so I don't become stuck or worry nearly if my charger is charging my batteries over dark so I can play a circular in the morning time or not. Or called-for upwards my batteries considering information technology just doesn't ever seem to shut off. I got plenty of other things in life to worry nearly. If I can just buy new from guys like Pete I will.
Pete not simply has smashing everyday low prices he besides has a great Gratuitous Shipping Policy – All Orders Over $99 Ship Gratis! Pete merely offers global brands you already know and trust. He merely does information technology For LESS! He really stocks ALL the major manufacturers of golf cart battery chargers like DPI, Delta Q, Lester Electrical, Pro Charging Systems, and Quick Charge. So if you are looking to just supplant your Ezgo golf game cart bombardment charger follow this thread or continue reading well-nigh your golf cart charger and learn well-nigh other things you should know
The Replacement?
